Running a winery that’s moving into NA production means your standards just went up. The margin for error is tighter, the product is more reactive, and the challenges you already manage, temperature control, oxidation risk, microbial stability, matter even more when alcohol isn’t there to act as a buffer. The right equipment for beverage production doesn’t eliminate all the hard work, but it gives you reliable control where guessing is expensive.

Here’s a practical look at the most common winemaking challenges wineries face in NA production, and the specific equipment BevZero’s Equipment team offers to address them.

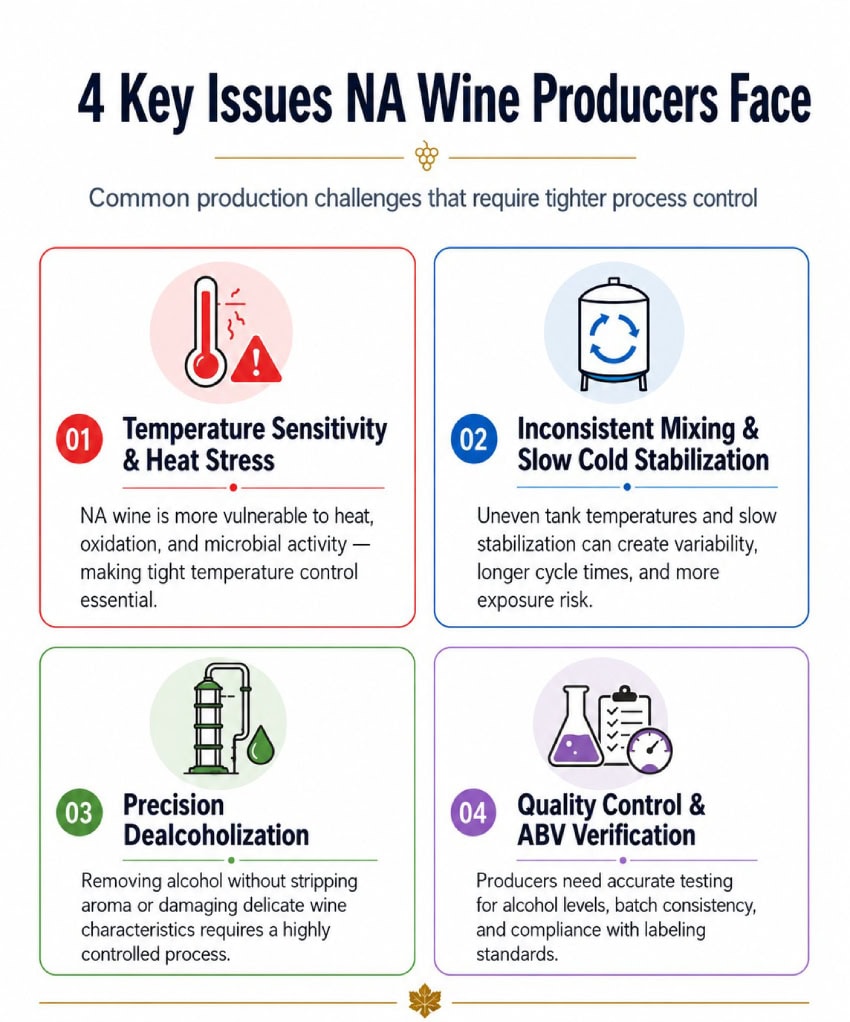

Key Takeaways

• NA wine is more temperature-sensitive and microbiologically vulnerable than traditional wine, your equipment needs to account for that
• BevZero Equipment distributes 4 solutions designed to address the most critical winemaking challenges: tank insulation, tank mixing, dealcoholization, and quality control
• All 4 can be integrated into an existing winery facility without a full infrastructure overhaul

The Challenge: NA Wine Demands More Control

“Producing high-quality non-alcoholic wine requires a different level of control — especially around temperature and microbial risk. The facilities and equipment you use play a direct role in whether that product succeeds or fails.” — Blair Sande, BevZero Equipment, PolarClad Division General Manager

Alcohol does quiet, important work in traditional wine. It inhibits microbial growth, softens acidity, carries aroma, and adds body. When you remove it, all of those properties need to be managed actively. That means tighter temperature windows, more disciplined oxygen management, faster processing cycles, and more consistent monitoring throughout production.

The challenges aren’t new, they’re the same ones every winery manages. They’re just less forgiving in NA production.

Challenge 1: Temperature Sensitivity and Heat Stress

Heat is the most persistent quality threat in any winery. For NA wine, it accelerates chemical reactions, speeds oxidation, and increases microbial risk — especially in products with residual sugar and lower alcohol protection.

Wineries in hot climates often spend around 60% of their energy bills on refrigeration alone. Even then, uninsulated tanks are constantly fighting ambient heat, which means inconsistent temperatures, higher energy draw, and quality variability across lots.

How PolarClad Tank Insulation Helps

PolarClad (USA) and BevClad (Europe) are tank insulation systems that BevZero Equipment distributes exclusively. The system delivers up to a 96.5% reduction in power usage for tank refrigeration and has an R-12 thermal barrier rating.

In practical terms, that means:

• Tanks hold tighter temperature bands without constant refrigeration cycling
• Daily temperature swings are reduced, which is critical for protecting delicate NA base wine
• Cold stabilization becomes easier and more consistent
• Energy savings can pay back the installation cost in as little as 1.5 years

Challenge 2: Inconsistent Mixing and Slow Cold Stabilization

Cold stabilization is time-consuming with traditional pump methods. The longer wine sits in an in-between state, partially stabilized, thermally uneven, the greater the exposure to oxidation and microbial risk. For NA wine, that window matters.

Thermal inconsistency inside large tanks also creates localized warm pockets that can behave differently from the rest of the batch. You can end up with lot-to-lot variation that has more to do with tank position than the wine itself.

How VinFoil Tank Mixers Help

BevZero Equipment is the exclusive distributor of the VinFoil mixer, designed and manufactured by Chemical Plant & Engineering (CPE). The hydrofoil impeller is engineered to maximize axial flow while minimizing turbulence. Its blades are slim at the tip, where rotational speed is highest, and wider at the base, where speed is lowest, allowing energy to be transferred efficiently into a pure axial flow pattern. The blade twist is computer-proportioned to reduce turbulence and support gentle, efficient mixing.

The results:

• Cold stabilization is achieved 3 times faster than pump-based methods
• Significant labor and energy savings compared to other methods
• More even temperature distribution throughout the tank
• Lower turbulence means gentler handling of fragile aromatic profiles

VinFoil is also useful beyond cold stabilization. It works for general blending, bentonite fining, oak extraction, and white wine primary fermentation control. For non-alcoholic solutions to ensure product safety due to absence of alcohol’s natural antimicrobial protection, there is a sanitary design available (Sanfoil).

BevZero offers a custom-built trial unit. Contact us for more information.

Challenge 3: Precision Dealcoholization

This is the core technical challenge in NA wine production. Removing alcohol gently, without stripping aromas, damaging delicate volatiles, or losing significant volume, requires the right process and the right equipment.

Vacuum distillation is the method BevZero uses for its own dealcoholization services, and it’s the technology behind ClearAlc. The principle: low temperatures, brief residence times, and thin turbulent films allow selective separation of alcohol and aroma compounds without the thermal stress that damages wine quality.

How ClearAlc Dealcoholization Equipment Helps

ClearAlc is manufactured by Tomsa Destil, a European company with over 170 years of expertise in alcohol technology. BevZero is the exclusive global distributor. The system won the 2025 WINnovation Award for innovation in wine dealcoholization.

Key specs:

• Single-pass vacuum distillation process
• Reduces alcohol down to 0.05% ABV
• Can rectify the alcohol fraction up to 92% ABV
• Extracts heads, hearts, and tails for full fractionation control
• Model sizes from 800 L/h to 3,000 L/h
• Fully automated with integrated control panels and remote data acquisition

For wineries that want to bring dealcoholization in-house, ClearAlc gives you the same technology BevZero uses for its own processing services. You own the process, the throughput, and the flexibility to run the ABV targets your products require.

Optional enhancements include a degasification column, heat pump, and electrical boiler. Spare parts and O&M services are available.

Challenge 4: Quality Control and ABV Verification

NA wine has a tighter tolerance for error. Hitting your ABV target matters not just for quality, it affects labeling compliance, since the definitions of “alcohol-free” and “non-alcoholic” vary by market. In the USA, non-alcoholic means under 0.5% ABV. In the UK, alcohol-free means under 0.05% ABV.

Beyond ABV, you need to monitor for fermentation activity in finished product, track consistency across batches, and identify deviations early, especially as distribution widens.

How the ImplenQ UV-Vis Spectrometer Helps

BevZero is an authorized partner and distributor of the ImplenQ, an all-in-one UV-Vis spectrometer from Implen designed for wine and spirits quality control.

What it does:

• Alcohol content testing with no dilutions required
• Wine analysis across red, white, and rosé
• Fermentation monitoring
• Batch consistency checks across production runs

What makes it practical on the floor:

• Only 5 microliters of liquid needed per sample
• No calibration, no recalibration, no regular maintenance ever required
• Battery-powered for mobile use
• Works as a standalone unit
• World’s smallest footprint in its class at 20 x 20 x 12 cm

For process application details, BevZero has application flyers available on the QC Spectroscopy equipment page.

How These 4 Work Together

These aren’t 4 separate purchases for 4 separate problems. They cover the main control points in an NA production workflow:

• Tank insulation protects base wine quality during storage and processing
• Tank mixers reduce cycle time and improve thermal consistency
• ClearAlc handles the dealcoholization itself with precision and efficiency
• ImplenQ gives you verification at every stage — fermentation, post-processing, and final QA

Together, they give a winery the same level of process control that BevZero has built into its own facilities over 30 years.

What to Do Next

Identify your biggest production gap

• Is your biggest challenge temperature consistency, dealcoholization throughput, or batch verification?
• Start with the equipment that addresses the problem costing you the most in product loss or rework

Talk to BevZero’s equipment team

• BevZero’s engineers, enologists, and equipment specialists can assess your facility and help you figure out which combination makes sense for your production volume and goals
• Contact BevZero at bevzero.com/contact

Ready to Bring Better Control to Your NA Production?

BevZero has spent over 30 years developing the processes and equipment that make high-quality NA wine possible. If you’re exploring what it would take to upgrade your facility, or just want to understand which equipment makes the most sense for your production stage, our team is glad to walk through it with you.

👉 Contact BevZero online now or email us at [email protected] to start your NA wine production today.

Frequently Asked Questions

Does BevZero sell equipment directly, or only offer dealcoholization as a service?

Both. BevZero runs dealcoholization services at its facilities in California, Spain, and South Africa, but it also sells and distributes equipment for wineries that want to bring production in-house. ClearAlc Dealcoholization Plants, PolarClad/BevClad Tank Insulation Systems, VinFoil Tank Mixers, and the ImplenQ spectrometer are all available through BevZero’s equipment division.

What size winery is ClearAlc designed for?

ClearAlc systems are available in model sizes from 800 L/h to 3,000 L/h, which covers a fairly wide range of production volumes. BevZero’s technical team can help you determine the right configuration based on your throughput targets and facility setup.

Can PolarClad tank insulation be retrofitted to existing tanks?

Yes. PolarClad is designed to be installed on existing tanks and is available in the USA, while BevClad covers Europe. BevZero’s team can advise on installation requirements for your specific tank dimensions and cellar conditions. Additionally, if you are purchasing new tanks, PolarClad insulation and Vinfoil mixers can be added to your tanks during the manufacturing process saving down time on site.  Contact us to learn more.  We have relationships with the top tank manufactures and can help you bundle a solution.

Is the ImplenQ suitable for wineries that don’t have a dedicated lab?

It’s designed to work without a dedicated lab setup. The unit requires no calibration, no dilutions, and only 5 microliters of sample per test. It runs on battery power and has a built-in touchscreen, so it can be used on the production floor or in the cellar without specialized equipment or infrastructure.

Does BevZero offer support after equipment purchase?

Yes. Spare parts and O&M (operations and maintenance) services are available for ClearAlc systems. BevZero’s global team of engineers and enologists also provides technical support across all equipment lines.
